상세 정보 |
|||
| 모델 번호.: | VS-052 ~ VS-400 | 작업 유형: | 로타리 |
|---|---|---|---|
| 압력: | 중간 압력 | 작업 온도: | 평온 |
| 재료: | 알류미늄 | 날개 재료: | 경화 합금 강철 |
| 피니언 코팅: | 니켈 도금(15um 이상) | 액추에이터 본체 코팅: | 경질 아노다이징 처리(30um 이상) |
| 엔드 캡 코팅: | 에폭시 코팅 (80um 이상) | 피스톤 코팅: | 경질 아노다이징 처리(30um 이상) |
| 여행 조정: | ±5° | 스프링 재질: | 고장력강 |
| 스프링 코팅: | 코팅된 에폭시 | 베어링 재료: | 내구성이 뛰어난 화합물 |
| 생산 능력: | 50000pc / y | ||
| 강조하다: | Travel Adjustment ±5º Pneumatic Actuator,Position Indicator Pneumatic Air Actuator,High Performance Springs Rotary Actuator |
||
제품 설명

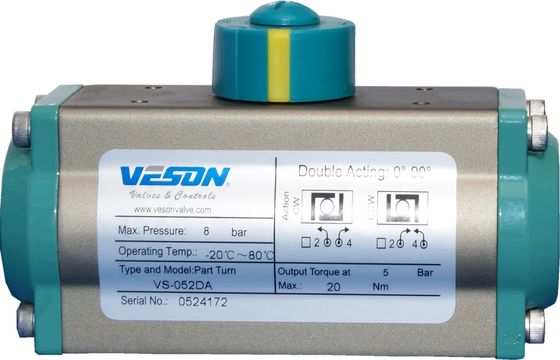

Pneumatic Actuator Cylinder Pneumatic Valve Control
Product Features
- Indicator: Position indicator with Namur mounting for accessory attachment
- Pinion: Hardened alloy steel pinion, precision ground and nickel plated (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body: Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection with minimal piston friction. Optional Epoxy Coated and PTFE Coated treatments available.
- End Cap: Epoxy coated (over 80μm) die casting aluminum for maximum corrosion resistance. PTFE Coated options available.
- Piston: Precisely balanced, hard anodized (over 30μm) die casting aluminum with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment: Standard ±5° adjustment in both open and closed positions via easily accessible external bolts.
- High Performance Springs: Epoxy coated high tensile steel for corrosion resistance and extended service life. Pre-loaded springs allow safe, rapid disassembly.
- Bearings & Guides: Highly durable compound material provides stable thrust with minimal friction and long service life.
