상세 정보 |
|||
| 모델 번호.: | VS-052 ~ VS-400 | 조정된 양식: | 스위칭 타입 |
|---|---|---|---|
| 작업 유형: | 로타리 | 압력: | 중간 압력 |
| 작업 온도: | 저온 | 행동 유형: | 이중 연기 |
| 재료: | 알류미늄 | 구조: | 랙과 피니언 |
| 전원: | 영적인 | 제품 유형: | 공압식 랙 및 피니언 액추에이터 |
| 작동: | 1/4 회전 | 제어 유형: | 온/오프, 포지셔닝, 변조, ESD |
| 밸브 유형: | 볼, 버터플라이, 플러그 및 기타 1/4 회전 | 작동 온도: | -20 ° C ~ +80 ° C (-4 ° F ~ +176 ° F) |
| 토크: | 12Nm ~ 6000Nm | 작동 압력: | 8.3바 / 120psi |
| 강조하다: | Precision Engineered Pneumatic Actuator,Medium Pressure Rack and Pinion Actuator,Low Temperature Valve Actuation System |
||
제품 설명
Precision Engineered Rack and Pinion Valve Actuation Systems
Crafted for excellence, the Veson VS series actuator delivers unparalleled performance across diverse quarter-turn valve applications. Featuring a robust powder coating and innovative high corrosion-resistant aluminum pinion design with stainless steel fasteners, this actuator offers unmatched durability for long-term reliability.
Key Features
- Hard anodized high-grade aluminum pinion for superior corrosion resistance
- Modular construction for easy alterations between spring/action settings
- Dual valve flange drilling patterns and interchangeable drive inserts
- NAMUR interface standard for seamless accessory integration
- Dual stroke adjustment to prevent premature valve failures
- Standardized components for quick delivery in common configurations
Technical Specifications
| Power Source | Pneumatic |
|---|---|
| Product Type | Pneumatic Rack and Pinion Actuator |
| Actuation | Quarter-turn |
| Control Type | On/Off, Positioning, Modulating, Emergency Shutdown (ESD) |
| Valve Type | Ball, Butterfly, Plug, and other quarter-turn applications |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F), with optional adjustments |
| Torque Range | 12 Nm to 6000 Nm (18 sizes available) |
| Operating Pressure | Up to 8.3 bar / 120 psi |
Available in both single and double acting configurations across 18 sizes, with torque capabilities from 12 Nm to 6000 Nm. Designed for simple installation and years of reliable performance with a "fit and forget" approach.

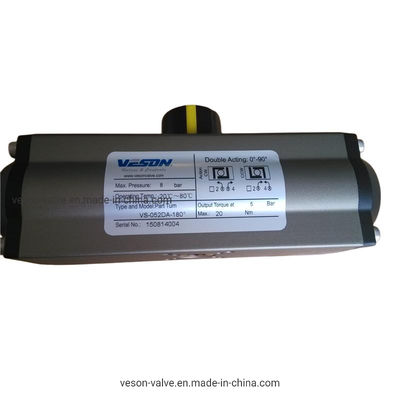

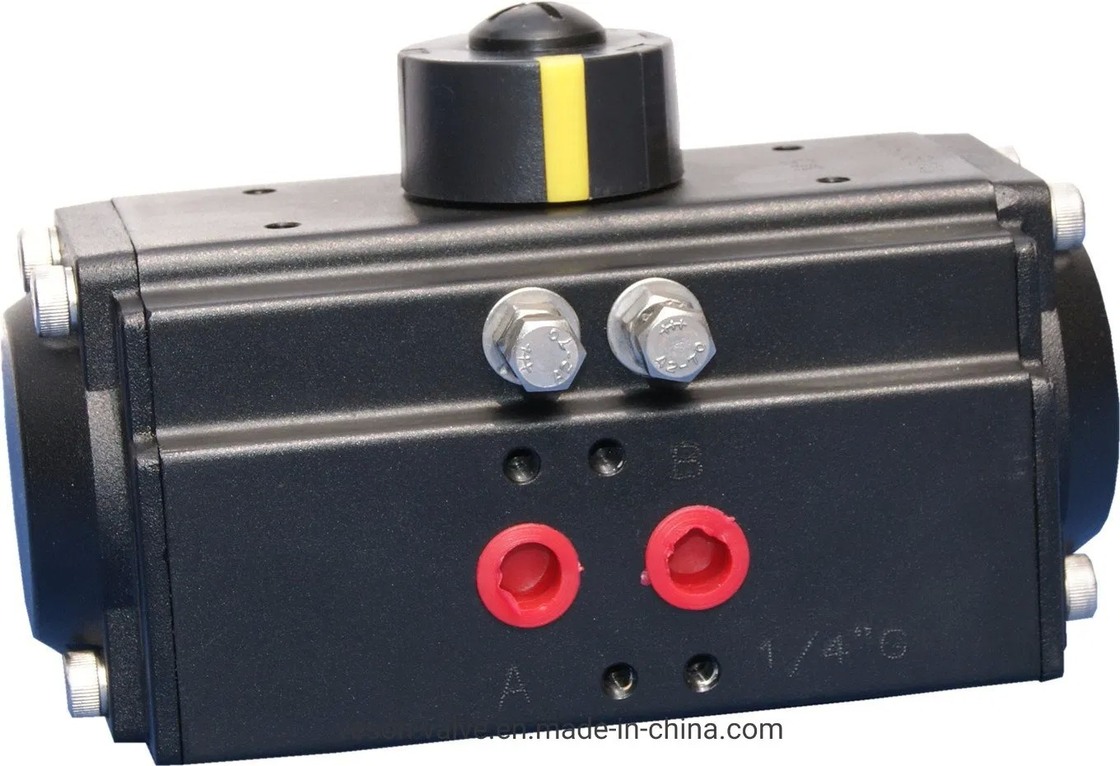

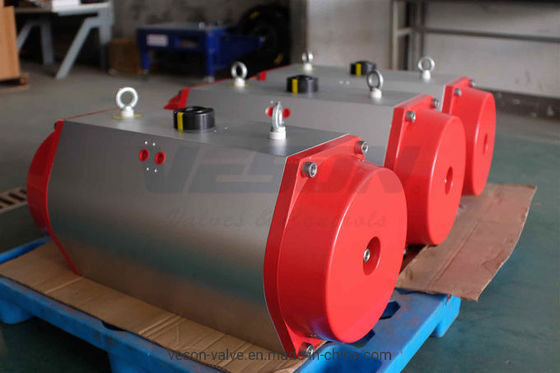

Product Images
