상세 정보 |
|||
| 모델 번호.: | VS-052 ~ VS-400 | 조정된 양식: | 온오프 |
|---|---|---|---|
| 작업 유형: | 로타리 | 압력: | 중간 압력 |
| 작업 온도: | 평온 | 행동 유형: | 이중 연기 |
| 재료: | 알류미늄 | 구조: | 랙과 피니언 |
| 날개 재료: | 경화 합금 강철 | 피니언 코팅: | 니켈 도금(15um 이상) |
| 액추에이터 본체 코팅: | 경질 아노다이징 처리(30um 이상) | 엔드 캡 코팅: | 에폭시 코팅 (80um 이상) |
| 피스톤 코팅: | 경질 아노다이징 처리(30um 이상) | 여행 조정: | ±5° |
| 스프링 코팅: | 코팅된 에폭시 | ||
| 강조하다: | ISO5211 & DIN3337 Standard Pneumatic Actuator,CE & SGS Certified Valve Actuator,VS-052~VS-400 Model Pneumatic Actuator |
||
제품 설명

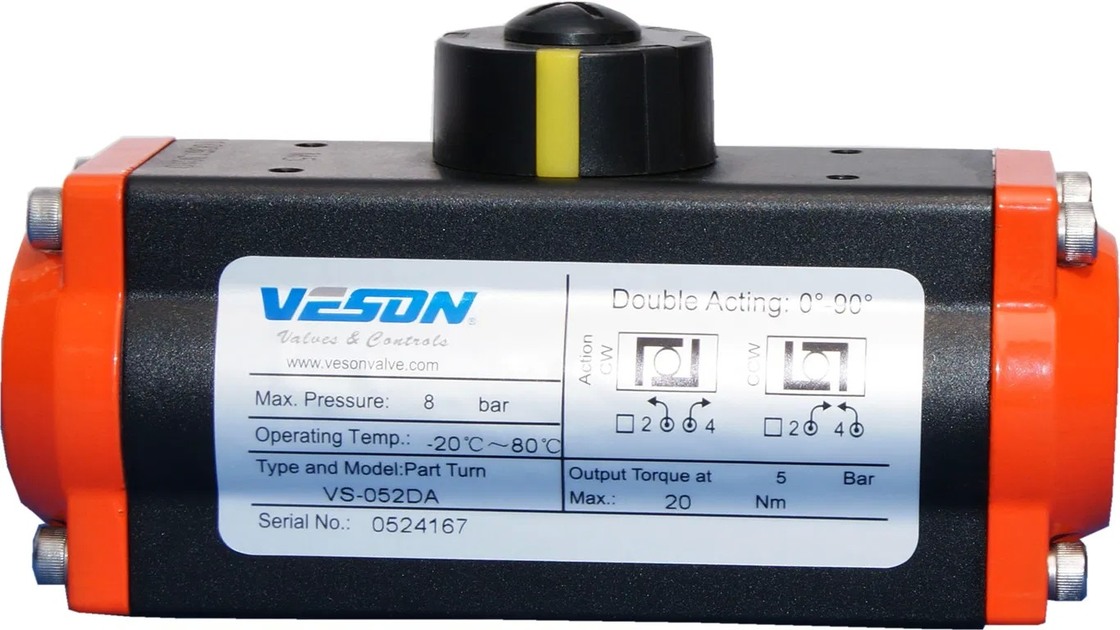

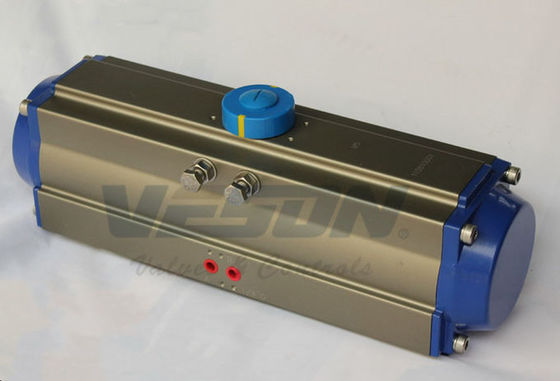

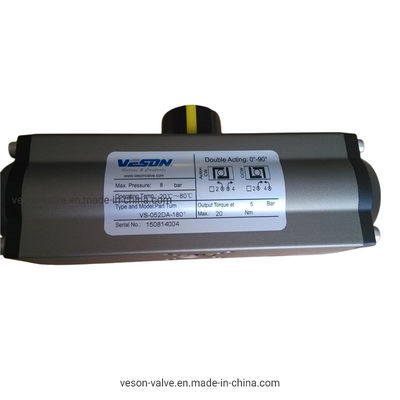

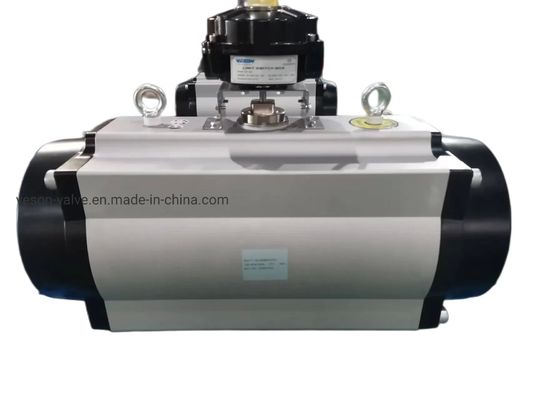

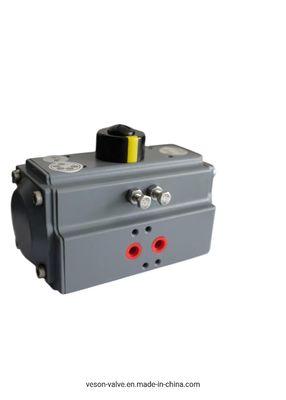

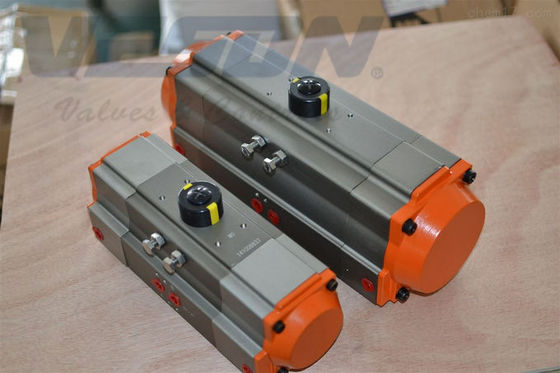

Valve Pneumatic Actuator Pneumatic Drive Actuated Solution
High-performance pneumatic actuator solution designed for industrial valve applications, featuring durable construction and precision engineering.
Key Features
- Position Indicator: Equipped with Namur mounting for accessory installation.
- Precision Pinion: Hardened alloy steel with nickel plating (over 15μm) for reduced friction and maximum wear resistance. Compliant with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel or aluminum alloy options.
- Durable Actuator Body: Hard-anodized aluminum extrusion (over 30μm) for corrosion protection and minimal piston friction. Optional epoxy or PTFE coatings available.
- Corrosion-Resistant End Caps: Epoxy-coated die-cast aluminum (over 80μm) with optional PTFE coating.
- Precision Piston: Hard-anodized die-cast aluminum (over 30μm) with high-quality guides and twin rack-and-pinion design for consistent torque output.
- Adjustable Travel: ±5° adjustment in both open and closed positions via external adjustment bolts.
- High-Performance Springs: Epoxy-coated high-tensile steel for corrosion resistance and extended service life. Designed for safe, rapid disassembly.
- Premium Bearings & Guides: Durable compound material for high thrust stability with minimal friction and long operational life.
