상세 정보 |
|||
| 모델 번호.: | VS-052 ~ VS-400 | 힘: | 영적인 |
|---|---|---|---|
| 압력 방향: | 복동실린더 | 공기 공급: | 40-100psig |
| 부속품: | 밸브 포지셔너 | 날개 재료: | 경화 합금 강철 |
| 피니언 코팅: | 니켈 도금(15um 이상) | 액추에이터 본체 재질: | 알루미늄 압출 |
| 액추에이터 본체 코팅: | 경질 아노다이징 처리(30um 이상) | 엔드 캡 재료: | 주조 알루미늄 |
| 엔드 캡 코팅: | 에폭시 코팅 (80um 이상) | 피스톤 소재: | 주조 알루미늄 |
| 피스톤 코팅: | 경질 아노다이징 처리(30um 이상) | 여행 조정: | ±5° |
| 스프링 재질: | 고장력강 | ||
| 강조하다: | 40-100psig Air Supply Pneumatic Actuator,Travel Adjustment ±5º Rack Pinion Actuator,NBR/HNBR/Viton O Ring Pneumatic Rotary Actuator |
||
제품 설명

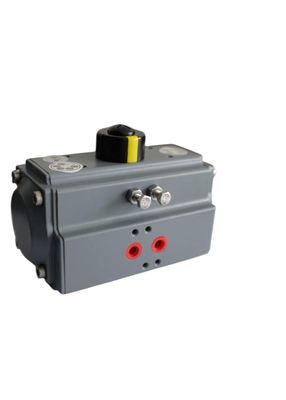

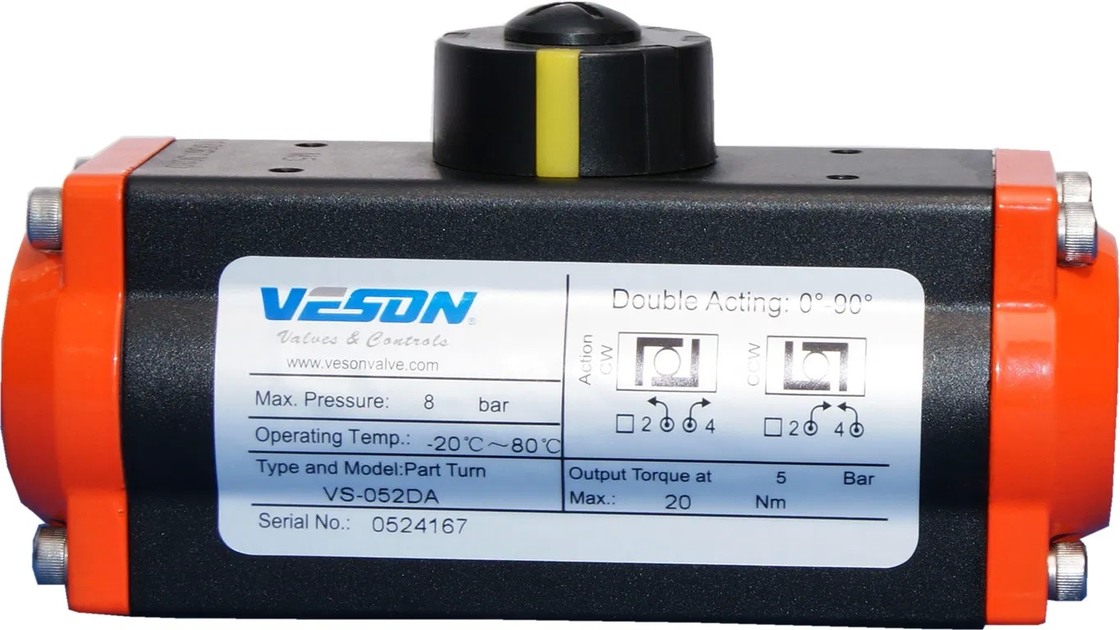

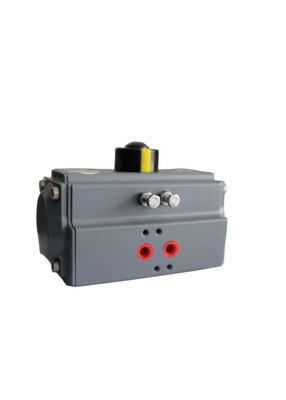

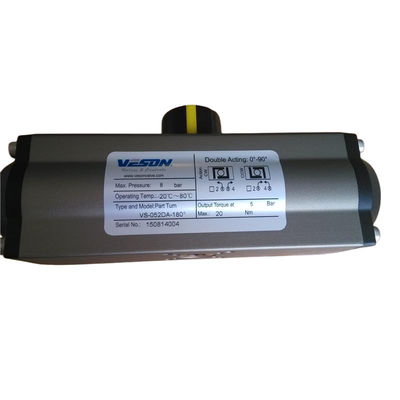

Pneumatic Actuator Rack Pinion with NBR/HNBR/Viton O Ring
This high-performance pneumatic actuator features precision engineering with durable materials for reliable operation in industrial applications.
Key Features
- Position Indicator: Standard Namur mounting for accessory compatibility
- Precision Pinion: Hardened alloy steel with nickel plating (>15μm) for reduced friction and maximum wear resistance
- Durable Actuator Body: Hard anodized aluminum extrusion (>30μm) with optional epoxy or PTFE coating
- Corrosion-Resistant End Caps: Epoxy coated die-cast aluminum (>80μm) with optional PTFE treatment
- Balanced Piston: Hard anodized die-cast aluminum (>30μm) with twin rack and pinion design for consistent torque
- Adjustable Travel: ±5° adjustment in both open and closed positions via external bolts
- High-Performance Springs: Epoxy-coated high tensile steel for corrosion resistance and rapid disassembly
- Durable Bearings: High-trust compound material for minimal friction and extended service life
Specifications
Complies with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
