상세 정보 |
|||
| 모델 번호.: | VS-052 ~ VS-400 | 힘: | 영적인 |
|---|---|---|---|
| 압력 방향: | 복동실린더 | 날개 재료: | 경화 합금 강철 |
| 피니언 코팅: | 니켈 도금(15um 이상) | 액추에이터 본체 재질: | 알루미늄 압출 |
| 액추에이터 본체 코팅: | 경질 아노다이징 처리(30um 이상) | 엔드 캡 재료: | 주조 알루미늄 |
| 엔드 캡 코팅: | 에폭시 코팅 (80um 이상) | 피스톤 소재: | 주조 알루미늄 |
| 피스톤 코팅: | 경질 아노다이징 처리(30um 이상) | 여행 조정: | 열림/닫힘 위치에서 ±5° |
| 봄 자료: | 고장력강 | 스프링 코팅: | 코팅된 에폭시 |
| 베어링 재료: | 내구성이 뛰어난 화합물 | ||
| 강조하다: | Travel Adjustment ±5º Pneumatic Actuator,High Performance Springs Pneumatic Air Actuator,Precision Ground Pinion Pneumatic Rotary Actuator |
||
제품 설명

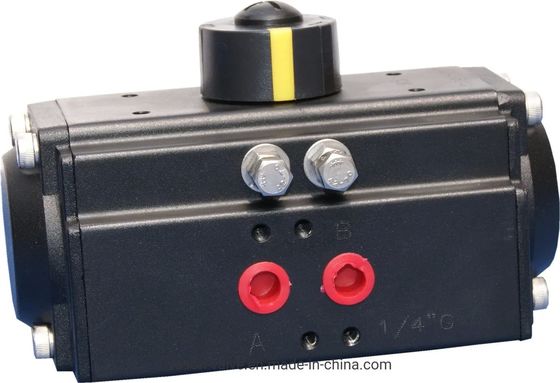

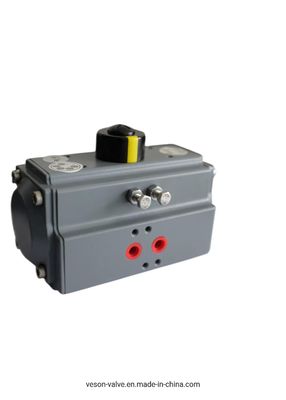

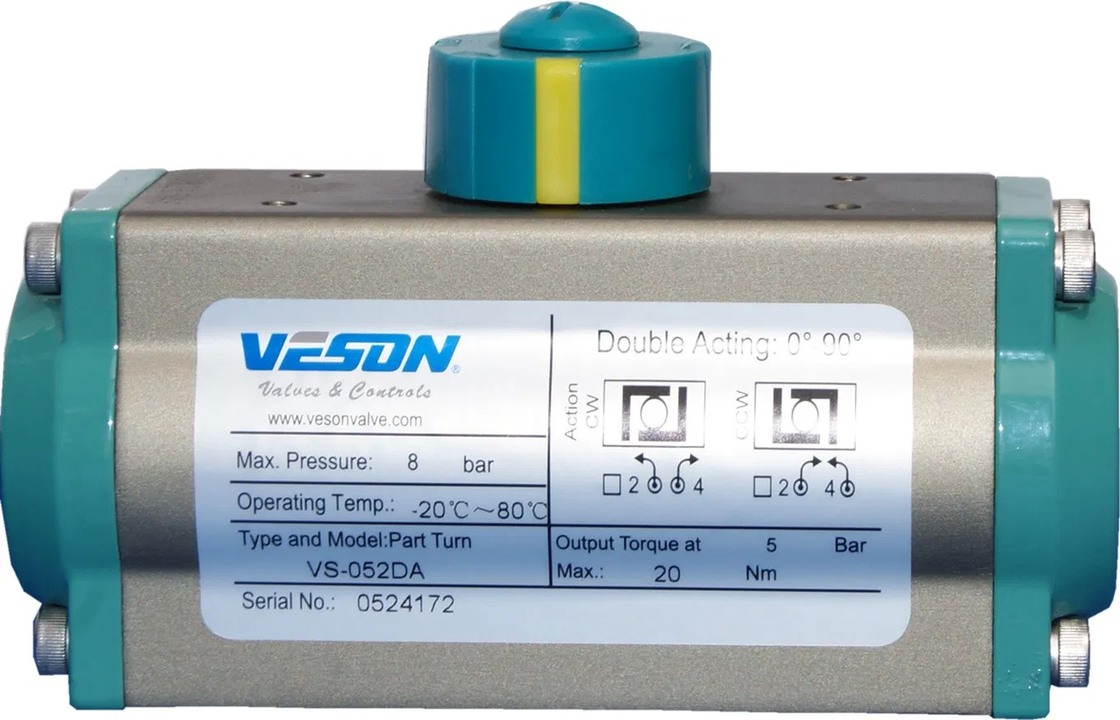

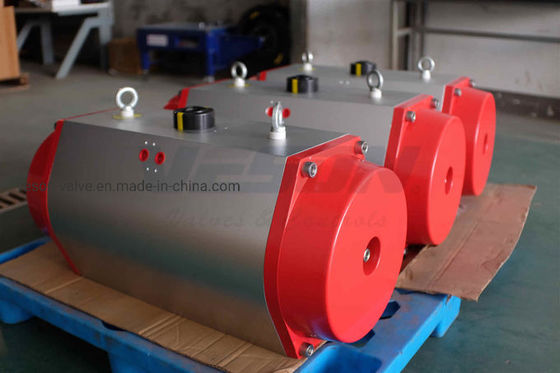

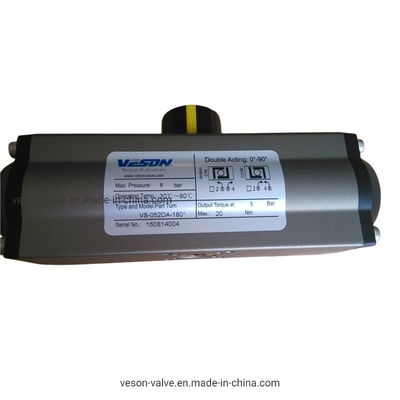

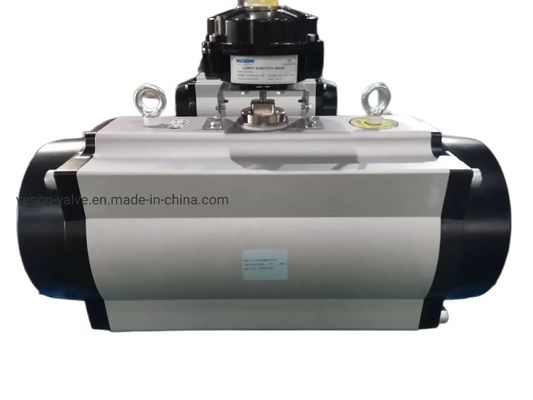

Single Acting Pneumatic Actuator
Key Features
- Position Indicator: Standard Namur mounting for accessory attachment on all VESON pneumatic actuators
- Precision Pinion: Hardened alloy steel with nickel plating (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions and material options (stainless steel, aluminum alloy) available
- Durable Actuator Body: Hard-anodized aluminum extrusion (over 30μm) for corrosion protection and minimal piston friction. Optional epoxy or PTFE coatings available
- Corrosion-Resistant End Caps: Epoxy-coated (over 80μm) die-cast aluminum with optional PTFE treatment
- Precision Piston: Hard-anodized (over 30μm) die-cast aluminum with high-quality guides. Twin rack and pinion design ensures consistent torque output
- Adjustable Travel: ±5° adjustment in both open and closed positions via external adjustment bolts
- High-Performance Springs: Epoxy-coated high tensile steel for corrosion resistance and extended service life. Pre-loaded design allows safe, rapid disassembly
- Premium Bearings & Guides: High-durability compound material provides stable thrust with minimal friction for long operational life
Product Images
이 제품에 대한 자세한 내용을 알고 싶습니다
