상세 정보 |
|||
| 모델 번호.: | VS-052 ~ VS-400 | 힘: | 영적인 |
|---|---|---|---|
| 압력 방향: | 복동실린더 | 날개 재료: | 경화 합금 강철 |
| 피니언 코팅: | 니켈 도금(15um 이상) | 액추에이터 본체 재질: | 알루미늄 압출 |
| 액추에이터 본체 코팅: | 경질 아노다이징 처리(30um 이상) | 엔드 캡 재료: | 주조 알루미늄 |
| 엔드 캡 코팅: | 에폭시 코팅 (80um 이상) | 피스톤 소재: | 주조 알루미늄 |
| 피스톤 코팅: | 경질 아노다이징 처리(30um 이상) | 여행 조정: | 열림/닫힘 위치에서 ±5° |
| 봄 자료: | 고장력강 | 스프링 코팅: | 코팅된 에폭시 |
| 베어링 재료: | 내구성이 뛰어난 화합물 | ||
| 강조하다: | VS-052~VS-400 Model Pneumatic Actuator,Travel Adjustment ±5º Valve Actuator,Rotork Type Valve Actuator |
||
제품 설명

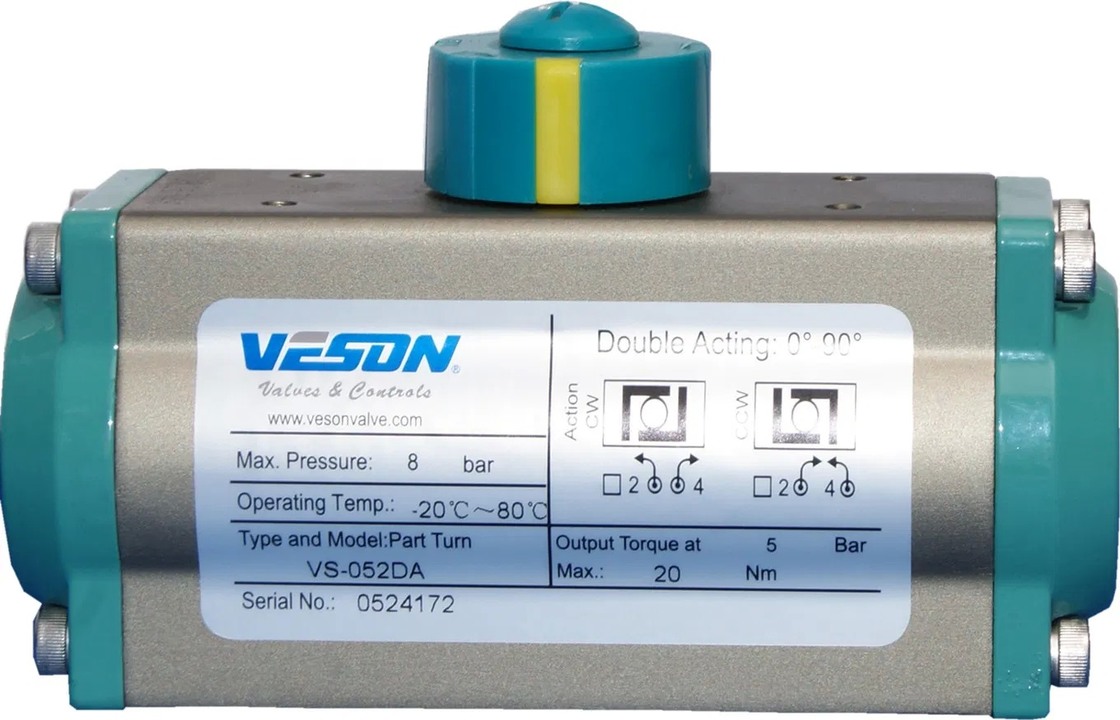

Double Acting Pneumatic Actuator Rotork Type Valve Actuator
This high-performance pneumatic actuator features precision engineering and durable materials for reliable valve operation in industrial applications.
Key Features
- Position Indicator: Standard Namur mounting for accessory installation
- Precision Pinion: Hardened alloy steel with nickel plating (15μm+) for reduced friction and maximum wear resistance
- Durable Actuator Body: Hard-anodized aluminum extrusion (30μm+) with optional epoxy or PTFE coating
- Corrosion-Resistant End Caps: Epoxy-coated die-cast aluminum (80μm+) with optional PTFE treatment
- Balanced Piston: Hard-anodized die-cast aluminum (30μm+) with twin rack and pinion design for consistent torque output
- Adjustable Travel: ±5° adjustment in both open and closed positions via external bolts
- High-Performance Springs: Epoxy-coated high-tensile steel for corrosion resistance and easy maintenance
- Durable Bearings: High-trust compound materials for stability and long service life
Product Images
Technical Specifications
Full conformance with ISO 5211 & DIN 3337 standards. Custom dimensions and material options available including stainless steel and aluminum alloy components.
