상세 정보 |
|||
| 연결 양식: | 용접 | 운전 모드: | 영적인 |
|---|---|---|---|
| 공칭 압력: | ANSI 클래스 150-900 | 채널: | 바로 유형을 통해 |
| 구조: | 고정된 볼 밸브 | 유형: | 고정된 볼 밸브 |
| 기능: | 물을 빼다 | 온도: | 고온 |
| 기준: | 보증 12 개월 | 어플리케이션: | 산업용 사용 |
| Hs 코드: | 84123900 | ||
| 강조하다: | ISO5211 Standard Pneumatic Ball Valve,Direct Mount Profile 3-Way Ball Valve,High Temperature PVC Ball Valve |
||
제품 설명

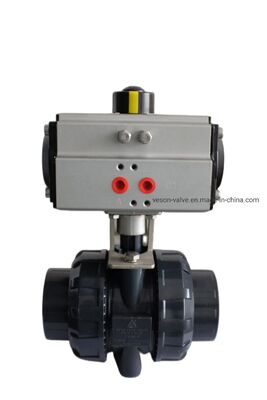

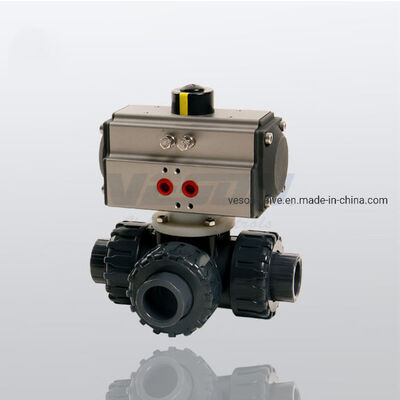

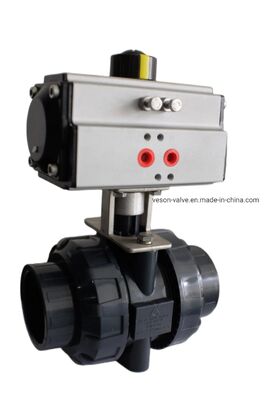

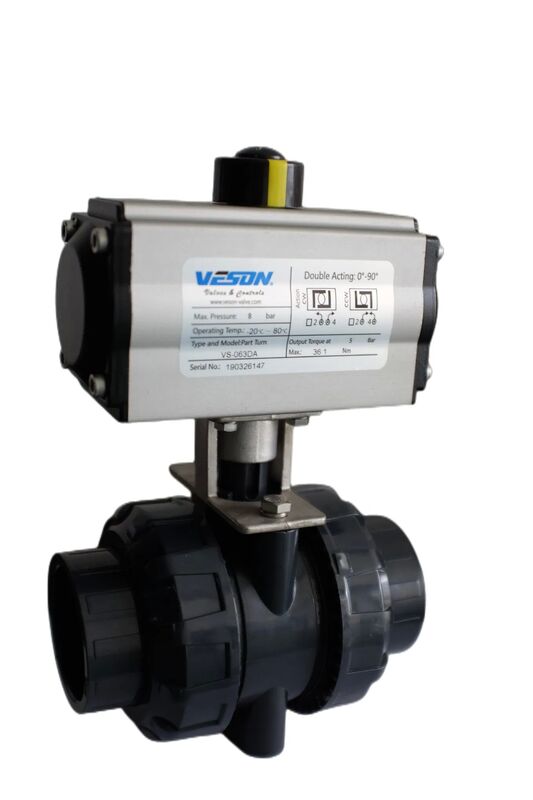

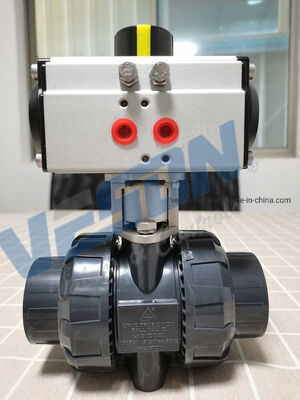

PVC Pneumatic 3 ways ball valve Pneumatically PVC 3-way ball valve
Specifications of Pneumatic Actuator
1. Acting type: Double
2. Medium: clean, dry and without corrosive compressed air
3. Air supply pressure: 0.25 -0.8 Mpa
4. Working Temperature: Standard Type: -20°C~+80°C
Low-temperature Type: -40°C~+80°C
| BALL VALVE 3-way | ||||||
| Selection of pneumatic actuator: matching size for reference only, valve torque plus 25% safety factor | ||||||
| Size | Valve Torque in.lbs | valve torque*1.25 | Double Acting Actuator | Actuator Torque (in.lbs) 5bar | Spring Return Actuator | Actuator Torque (in.lbs) 5bar FC |
| 1/2" | 79 | 98.75 | VS-052DA | 177 | VS-052SR10 | 70-104 |
| 3/4" | 85 | 106.25 | VS-052DA | 177 | VS-052SR10 | 70-104 |
| 1" | 110 | 137.5 | VS-052DA | 177 | VS-075SR10 | 190-318 |
| 1-1/2" | 290 | 362.5 | VS-075DA | 515 | VS-092SR10 | 407-574 |
| 2" | 680 | 850 | VS-092DA | 997 | VS-125SR10 | 1018-1497 |
| 2-1/2" | 1085 | 1356.3 | VS-105DA | 1441 | VS-140SR10 | 1538-2247 |
| 3" | 1597 | 1996.3 | VS-125DA | 2555 | VS-160SR10 | 2379-3388 |
| 4" | 1780 | 2225 | VS-125DA | 2555 | VS-160SR10 | 2379-3388 |
| BALL VALVE 2-way | ||||||
| Size | valve torque*1.25 | Valve Top Connection (mm) | Double Acting Actuator | Actuator Torque (in.lbs) 5bar | Spring Return Actuator | Actuator Torque (in.lbs) 5bar FC |
| 1/2" | 90 | 9 | VS-052DA | 177 | VS-052-SR10 | 70-104 |
| 3/4" | 100 | 9 | VS-052DA | 177 | VS-052-SR10 | 70-104 |
| 1" | 140 | 11 | VS-052DA | 177 | VS-063-SR10 | 190-318 |
| 1-1/2" | 240 | 14 | VS-063DA | 320 | VS-083-SR10 | 264-359 |
| 2" | 480 | 14 | VS-075DA | 515 | VS-105-SR10 | 562-857 |
| 2-1/2" | 650 | 17 | VS-083DA | 631 | VS-125-SR10 | 1018-1497 |
| 3" | 1150 | 17 | VS-105DA | 1441 | VS-140-SR10 | 1538-2247 |
| 4" | 1400 | 22 | VS-105DA | 1441 | VS-140-SR10 | 1538-2247 |
High-temperature Type:-20°C~+180°C
5. Rotate angle: 90°± 5°
6. Solenoid valve voltage: AC220V or DC24V , or as per customer's request.
Design & Construction Of AT Series Double Acting Pneumatic Actuator
1. Full conformance to the latest specification: ISO5211DIN3337VD/VDE3845and NAMUR.
2. The extruding high-intensity aluminum body possesses a honed internal surface coated with hone anode oxygenation for long life, low coefficient of friction and swift performance.
3. Excellent, compact and modernized construction along with multi-specifications make the selection both economic and beneficial.
4. All acting surfaces adopt high-quality bearings, resulting in low friction, high cycle life, and no noise. The two independent external travel stop adjustment bolts can easily and precisely adjust ±5°at both open and close directions.
5. The same outline actuator has the functional modes of double acting and spring return, and the spring return has the normal-open and normal-close styles.
6. Multi-function position indicator with NUMER is convenient for mounting accessories.
7. Pre-compressed load spring is convenient for safe mounting and teardown procedures.
8. Die-casting aluminum pistons and end caps have high intensity and lightweight.
9. Different O-rings materials are available for high and low temperature.
10. According to different demands we can offer Multi-travel rotations (e.g. 120°135°180°) and three position actuators.
11. Solenoid valves are easily mounted without any connecting plank.
