상세 정보 |
|||
| 모델 번호: | VS-063DA | 연결 양식: | 플랜지 |
|---|---|---|---|
| 운전 모드: | 영적인 | 공칭 압력: | PN1.0-32.0MPA |
| 채널: | 바로 유형을 통해 | 구조: | 플로팅 볼 밸브 |
| 유형: | 플로팅 볼 밸브 | 온도: | 평온 |
| 3차원 타입: | L- 포트 | 플랜지 치수를 끝내십시오: | ASME B16.5 |
| 테스트 표준: | ASME B16.34 | 사양: | 1 인치 -12 인치 |
| 신체 재료: | 316 스테인레스 스틸 | 볼 재료: | 316 스테인레스 스틸 |
| 줄기 재료: | 316 스테인레스 스틸 | ||
| 강조하다: | 2'' 3'' DN50 DN80 Flanged Ball Valve,ANSI-150lb Pneumatic Ball Valve,316 Stainless Steel Ball Valve |
||
제품 설명

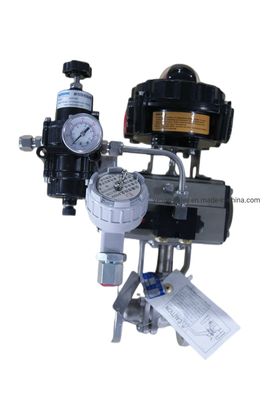

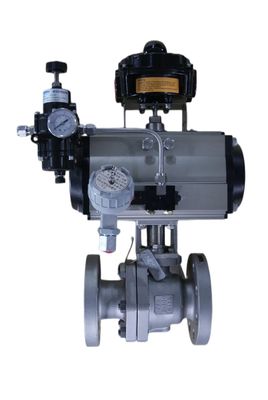

Pneumatic 2 Way/3 Way Ball Valve - ANSI 150# Flange End
DN50/DN80 | L-PORT/T-PORT | Direct Mount Type
Veson air actuated ANSI 150# stainless steel flanged ball valves are engineered for demanding chemical and industrial applications. Featuring a full port 2-piece investment cast design, these valves directly mount to actuators with standard ISO5211 mounting pads.
Ball Valve Standard Features
- Full port design for unrestricted flow
- 316 stainless steel construction (body, ball, and stem)
- Blow-out proof stem design
- RTFE ball seats for extended cycle life
- Triple RTFE/Viton stem seal design, live loaded and adjustable
- ISO5211 direct mounting capability
- Anti-static design for safety
Pneumatic Actuator Features
- Extended cycle life (1 million cycles)
- Quarter turn rack & pinion operation
- Highly visible valve position indicator
- Compatible with dry or lubricated pilot air
- Factory lubricated for normal service life
- Anodized aluminum body with epoxy-polyester coated end covers
- Namur & ISO mounting compatibility
Technical Specifications
| Operating Pressure | 80-120 PSI |
|---|---|
| Mounting | Direct mount with ISO5211 pad |
| Orientation | Can be mounted in any position |
| Testing Standard | API 598 |
| Temperature Range | Standard or extended with optional high temperature kit |
Note: Optional accessories including high temperature valve mounting kits for extended temperature range or wall mounting applications are available.
