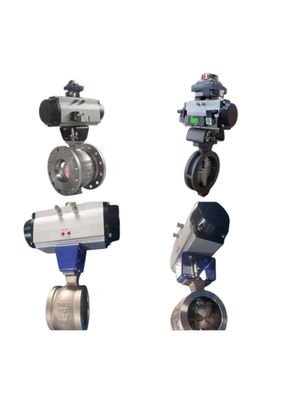

Wafer Type V Port Pneumatic Ball Valve with Double Action Actuator Class 150-600 PN16-PN110 Size 1/2"-24"

Wafer Type V Port Pneumatic Ball Valve with Double Action Actuator Class 150-600 PN16-PN110 Size 1/2"-24"

제품 상세 정보:

결제 및 배송 조건:

최소 주문 수량: 1
최고의 가격 접촉

상세 정보
채널 유형: 바로 유형을 통해 구조: 플로팅 볼 밸브
밸브 유형: 플로팅 볼 밸브 등급 평가: 150# --- 600# PN16-PN110
크기 범위: 1/2 "-24"DN15-DN600 신체 재료: 탄소강, 스테인레스 스틸, 이중 스테인레스 스틸, 청동, Inconel
연결 끝: 플랜지 엔드 (RF, RTJ) 작동 유형: 전기인 공기인 설명서, 기어
압력 등급: Class150 - Class 2500 또는 PN 16 - PN 420 재료 옵션: WCB, LCB, CF3, CF8M, CF3M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, 합금
열 보존: 예 보냉: 예
전체 직경: 예 누설 성능: 누출이 없습니다
건축 유형: 일체형
강조하다:

Class 150-600 Pneumatic Ball Valve

,

PN16-PN110 V Port Ball Valve

,

Size 1/2"-24" Wafer Type Ball Valve

제품 설명

Wafer Type V Port Ball Valve with Double Action Actuator
Wafer Type V Port Pneumatic Ball Valve with Double Action Actuator Class 150-600 PN16-PN110 Size 1/2"-24" 0 Wafer Type V Port Pneumatic Ball Valve with Double Action Actuator Class 150-600 PN16-PN110 Size 1/2"-24" 1
Product Specifications
PRODUCT NAME Pneumatic Jacket ball valve
BRAND Veson
ORIGIN China
Packing Plywood case
Class / Rating 150#---600# PN16-PN110
Size 1/2"-24"DN15-DN600
Materials Body Material: Carbon steel, Stainless steel, Duplex stainless steel, Bronze, Inconel etc
Ends Flange End (RF, RTJ)
Operation Manual, Gear, Pneumatic, Electric, etc
Jacket Ball Valves Description
Jacket ball valve features excellent heat-preservation and cold-insulation properties. The full-diameter design matches pipe diameter to minimize heat loss from pipeline media. Primarily used for transporting viscous media that solidifies at normal temperatures in industries including petroleum, chemical, metallurgical, pharmaceutical, and food processing.
The monolithic construction design provides superior sealing performance with more compact dimensions and lighter weight compared to traditional ball valves. The carbon steel welded jacket offers enhanced pressure resistance and durability versus cast alternatives.
Product Features
  • Superior heat preservation and cold insulation capabilities
  • Full-diameter design reduces heat loss
  • Monolithic construction for better sealing
  • Compact and lightweight design
  • Enhanced pressure resistance
Applicable Standards
Sizes:
1/2" - 24", DN 15 - DN 600
Pressure Rating:
Class150 - Class 2500 or PN 16 - PN 420
Material of Valve Body:
WCB, LCB, CF3, CF8M, CF3M, CF8M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C95500, Alloy 20 etc
