상세 정보 |
|||
| 채널 유형: | 바로 유형을 통해 | 구조: | 플로팅 볼 밸브 |
|---|---|---|---|
| 밸브 유형: | 플로팅 볼 밸브 | 등급 평가: | 150# --- 600# PN16-PN110 |
| 크기 범위: | 1/2 "-24"DN15-DN600 | 신체 재료: | 탄소강, 스테인레스 스틸, 이중 스테인레스 스틸, 청동, Inconel |
| 연결 끝: | 플랜지 엔드 (RF, RTJ) | 작동 유형: | 전기인 공기인 설명서, 기어 |
| 압력 등급: | Class150 - Class 2500 또는 PN 16 - PN 420 | 재료 옵션: | WCB, LCB, CF3, CF8M, CF3M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C9 |
| 열 보존: | 예 | 보냉: | 예 |
| 유량 직경: | 전체 직경 | 누설 성능: | 누출이 없습니다 |
| 건축 유형: | 일체형 | ||
| 강조하다: | Pressure Rating 150#-600# Pneumatic Ball Valve,Size 1/2"-24" Jacketed Ball Valve,DN15-DN600 Steam Sulphur Ball Valve |
||
제품 설명

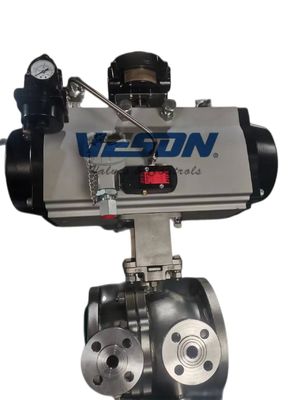

| PRODUCT NAME | Pneumatic Jacket ball valve |
|---|---|
| BRAND | Veson |
| ORIGIN | China |
| Packing | Plywood case |
| Class / Rating | 150#---600# PN16-PN110 |
| Size | 1/2"-24"DN15-DN600 |
| Materials | Body Material: Carbon steel, Stainless steel, Duplex stainless steel, Bronze, Inconel etc |
| Ends | Flange End (RF, RTJ) |
| Operation | Manual, Gear, Pneumatic, Electric, etc |
Jacket ball valve features excellent heat-preservation and cold-insulation properties. The full-diameter design matches pipe diameter to minimize heat loss from pipeline media. Primarily used for transporting viscous media that solidifies at normal temperatures in petroleum, chemical, metallurgical, pharmaceutical, and food industries.
The monolithic construction design provides superior sealing performance with more compact dimensions and lighter weight than traditional ball valves. The carbon steel welded jacket offers enhanced pressure resistance and durability compared to cast alternatives.
- Superior heat preservation and cold preservation capabilities
- Full-diameter design reduces media flow resistance
- Monolithic construction prevents leakage
- Compact and lightweight design
- Enhanced pressure resistance
Sizes: 1/2" - 24", DN 15 - DN 600
Pressure Rating: Class150 - Class 2500 or PN 16 - PN 420
Material of valve body: WCB, LCB, CF3, CF8M, CF3M, CF8M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C95500, Alloy 20 etc
