상세 정보 |
|||
| 모델 번호: | VS-240SR08-FO | 연결 양식: | 플랜지 |
|---|---|---|---|
| 운전 모드: | 영적인 | 공칭 압력: | JIS10-20K |
| 채널: | 바로 유형을 통해 | 구조: | 플로팅 볼 밸브 |
| 유형: | 플로팅 볼 밸브 | 기능: | 블로우다운 밸브 |
| 온도: | 평온 | 플랜지 치수를 끝내십시오: | ASME B16.5 |
| 사양: | 1 인치 -12 인치 | 신체 재료: | 316 스테인레스 스틸 |
| 볼 재료: | 316 스테인레스 스틸 | 줄기 재료: | 316 스테인레스 스틸 |
| 기압: | 80-120 psi | ||
| 강조하다: | ASME B16.34 Pneumatic Ball Valve,ISO5211 Mounting Flanged Ball Valve,1 Million Cycles Air Actuated Ball Valve |
||
제품 설명

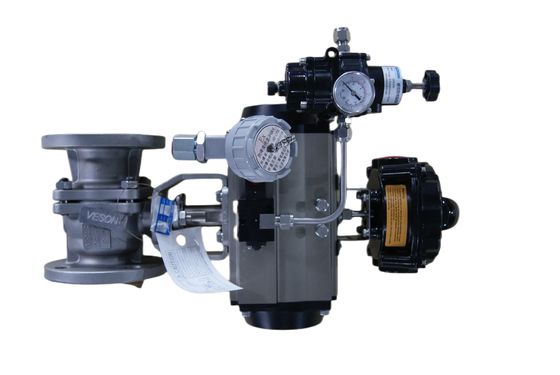

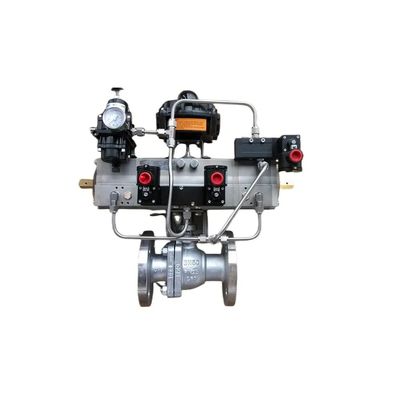

Pneumatic Actuated Flanged Ball Valve
Flanged Air Pressure Control System with Horizontal Pneumatic Actuators
Veson air actuated ANSI 150# stainless steel flanged ball valves are engineered for general chemical and industrial applications. Featuring a full port 2-piece investment cast design, these valves directly mount to actuators with standard ISO5211 mounting pads.
Double acting actuators operate with air pressure signals (80-120 PSI) for valve opening and closing. Available with high temperature valve mounting kits for extended temperature ranges or wall mounting applications. Valves can be mounted in any orientation and are tested per API 598 standards.
Ball Valve Standard Features
- Full port design for unrestricted flow
- 316 stainless steel body, ball and stem
- Blow out proof stem
- RTFE ball seats extend cycle life
- Triple RTFE/Viton stem seal design, live loaded and adjustable
- ISO5211 direct mounting
- Anti-static design
Pneumatic Actuator Standard Features
- Extended cycle life (1 million cycles)
- Quarter turn rack & pinion design
- Highly visible valve position indicator
- Compatible with dry or lubricated pilot air
- Factory lubricated for normal service life
- Anodized aluminum body with epoxy-polyester coated end covers
- Namur & ISO mounting compatibility
