상세 정보 |
|||
| 모델번호: | VS-075 | 연결 양식: | 나무르 & ISO5211 |
|---|---|---|---|
| 채널: | 바로 유형을 통해 | 구조: | 피스톤 |
| 유형: | 랙 & 피니언 | 온도: | 평온 |
| 기준: | ISO5211 | 어플리케이션: | 공업용 용도, 물 공업용 용도 |
| 운송 패키지: | 합판 케이스 패키지 | 사양: | 1 인치 -12 인치 |
| 등록 상표: | 베슨 또는 쿠소 머 "s | 기원: | 중국 |
| Hs 코드: | 8481804090 | 생산능력: | 50000pc / y |
| 강조하다: | Pneumatic rack and pinion actuator 70NM torque,Corrosion resistant pneumatic actuator,Namur connection rack and pinion actuator |
||
제품 설명

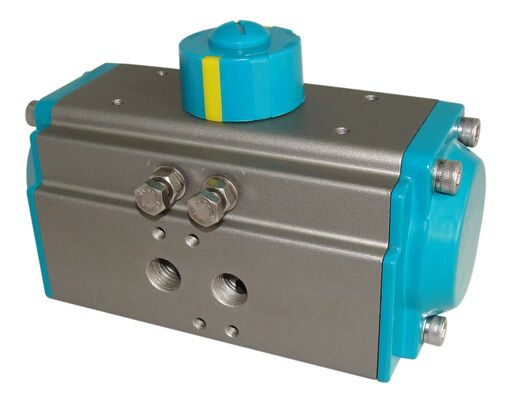

VS-075 (rack& pinion) have the following features.
> The output torque: Double: 70NM; Single: 11~26Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 70NM; Single: 11~26Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
