상세 정보 |
|||
| 모델 번호.: | VS-052 ~ VS-400 | 힘: | 영적인 |
|---|---|---|---|
| 압력 방향: | 복동실린더 | 날개 재료: | 경화 합금 강철 |
| 피니언 코팅: | 니켈 도금(15um 이상) | 액추에이터 본체 재질: | 알루미늄 압출 |
| 액추에이터 코팅: | 경질 아노다이징 처리(30um 이상) | 엔드 캡 재료: | 주조 알루미늄 |
| 엔드 캡 코팅: | 에폭시 코팅 (80um 이상) | 피스톤 소재: | 주조 알루미늄 |
| 피스톤 코팅: | 경질 아노다이징 처리(30um 이상) | 여행 조정: | 두 위치 모두에서 ±5° |
| 봄 자료: | 고장력강 | 스프링 코팅: | 코팅된 에폭시 |
| 베어링 재료: | 내구성이 뛰어난 화합물 | ||
| 강조하다: | ISO5211 & DIN3337 Pneumatic Actuator,VS-052~VS-400 Valve Actuator,50000PC/Y Air Actuator |
||
제품 설명

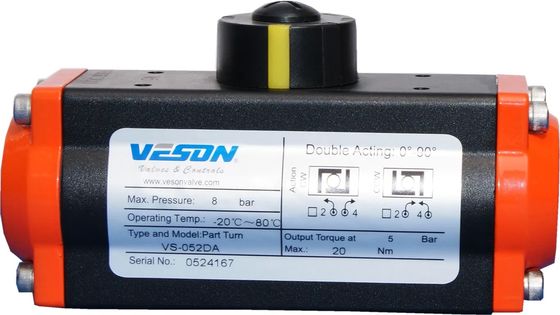

A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
The hardened alloy steel pinion features precision grinding and Nickel plating (over 15μm) to reduce friction and provide maximum wear resistance. Fully compliant with ISO5211 & DIN3337 standards. Custom dimensions available with optional stainless steel and aluminum alloy materials.
Hard anodized aluminum extrusion (over 30μm) protects against wear and corrosion while minimizing piston friction. Optional Epoxy Coated and PTFE Coated finishes available.
Epoxy coated (over 80μm) die-cast aluminum end caps provide maximum resistance against potentially corrosive elements. PTFE Coated treatment available as an option.
Precisely balanced, hard anodized (over 30μm) die-cast aluminum piston with high-quality guides. The twin rack and pinion design ensures constant torque output across all actuators.
Standard adjustment of ±5° in both open and closed positions via easily accessible external adjustment bolts.
High tensile steel springs with epoxy coating for corrosion resistance and extended service life. Pre-loaded springs allow for safe and rapid disassembly.
Highly durable compound material provides high thrust stability with minimal friction and long operational life.
