상세 정보 |
|||
| 모델 번호.: | VS-052 ~ VS-400 | 힘: | 영적인 |
|---|---|---|---|
| 압력 방향: | 복동실린더 | 날개 재료: | 경화 합금 강철 |
| 피니언 코팅: | 니켈 도금(15um 이상) | 액추에이터 본체 재질: | 알루미늄 압출 |
| 액추에이터 본체 코팅: | 경질 아노다이징 처리(30um 이상) | 엔드 캡 재료: | 주조 알루미늄 |
| 엔드 캡 코팅: | 에폭시 코팅 (80um 이상) | 피스톤 소재: | 주조 알루미늄 |
| 피스톤 코팅: | 경질 아노다이징 처리(30um 이상) | 여행 조정: | 열림/닫힘 위치에서 ±5° |
| 봄 자료: | 고장력강 | 스프링 코팅: | 코팅된 에폭시 |
| 베어링 재료: | 내구성이 뛰어난 화합물 | ||
| 강조하다: | ISO5211 & DIN3337 Standard Pneumatic Air Actuator,CE & SGS Certified Valve Actuator,Hard Anodized Aluminum Air Torque Actuator |
||
제품 설명

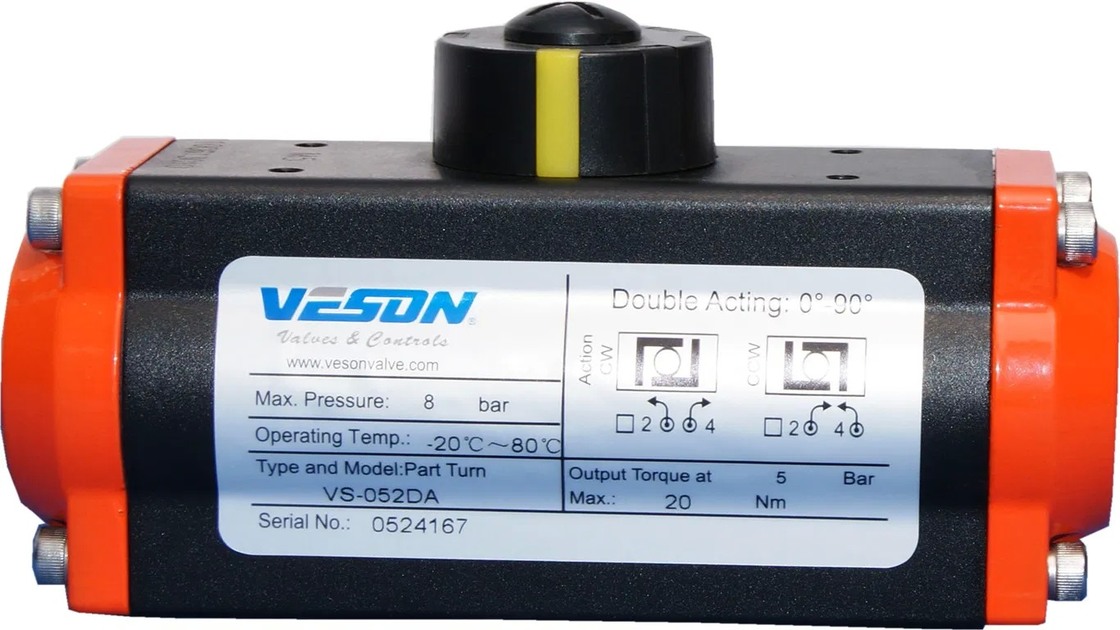

Air Torque Type Valve Actuator
Position Indicator
All VESON pneumatic actuators feature a position indicator with Namur mounting for accessory attachment.
Pinion
Precision-ground hardened alloy steel pinion with Nickel plating (over 15μm) ensures minimal friction and maximum wear resistance.
Standards: Fully compliant with ISO5211 & DIN3337
Options: Available in stainless steel and aluminum alloy with customizable dimensions
Actuator Body
Hard-anodized aluminum extrusion (over 30μm) provides superior wear and corrosion protection while minimizing piston friction.
Options: Epoxy Coated and PTFE Coated variants available
End Cap
Epoxy coated die-cast aluminum end caps (over 80μm) offer maximum resistance against corrosive elements.
Options: PTFE Coated treatment available
Piston
Precisely balanced, hard-anodized die-cast aluminum piston (over 30μm) with high-quality guides and twin rack-and-pinion design ensures constant torque output.
Travel Adjustment
Standard ±5° adjustment in both open and closed positions via easily accessible external adjustment bolts.
High Performance Springs
Epoxy-coated high tensile steel springs provide corrosion resistance and extended service life.
Pre-loaded springs allow for safe and rapid disassembly.
Bearings & Guides
Highly durable compound material ensures high thrust stability with minimal friction for long operational life.
