제품 상세 정보:

결제 및 배송 조건:

최소 주문 수량: 1
최고의 가격 접촉

상세 정보
모델 번호.: VS-052 ~ VS-400 작업 유형: 로타리
압력: 저기압 작업 온도: 고온
행동 유형: 이중 연기 재료: 알류미늄
구조: 랙과 피니언 출력 토크: 9NM 내지 4620Nm
공기 공급: 6 바 바닥 드릴링: ISO5211/DIN3337
인터페이스 표준: VDI/VDE3845, 나무르 스트로크 조정: +/- 5°
도금: 닉레는 도금처리했습니다 액추에이터 모델: 15
생산 능력: 50000pc / y
강조하다:

ISO5211/DIN3337 Pneumatic Actuator

,

VDI/VDE3845 Pneumatic Actuator

,

Low Pressure Pneumatic Actuator

제품 설명

Pneumatic Actuator Nickle Plated
Product Overview

The VS series rack & pinion type pneumatic actuators deliver reliable performance with these key features:

  • 15 actuator models available with output torque ranging from 9NM to 4620Nm at 6 bar air supply
  • Bottom drilling complies with ISO5211/DIN3337 standards for valve compatibility
  • Interface for solenoid valve, shaft top end and top drilling for accessories follow VDI/VDE3845 and Namur standards
  • ±5° stroke adjustment capability
Nickel plating provides superior protection against corrosive and abrasive environments, making this actuator ideal for sanitary industry applications.
Product Images

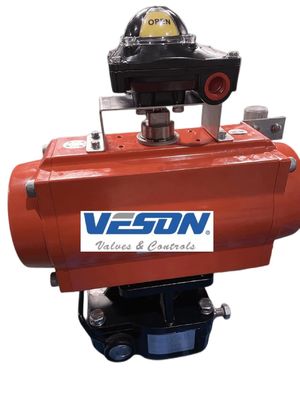

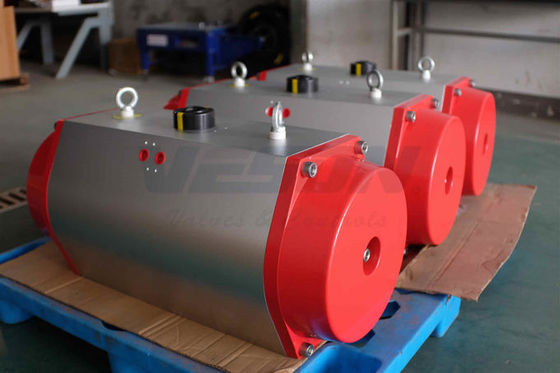

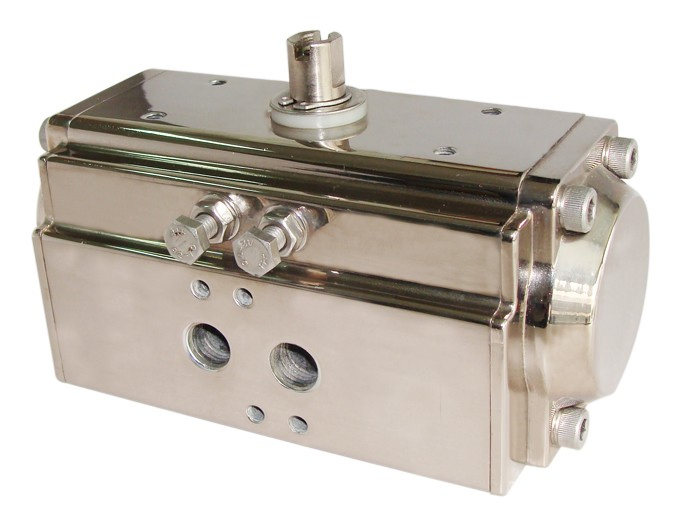

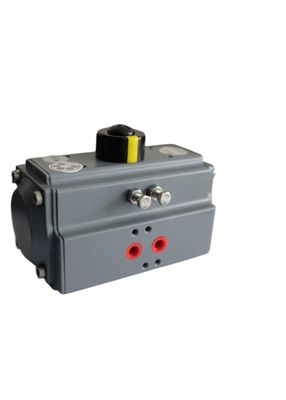

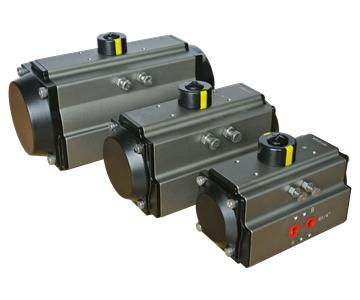

Nickel Plated Pneumatic Actuator with ISO5211/DIN3337 and VDI/VDE3845 Standards for Low Pressure Applications 0 Nickel Plated Pneumatic Actuator with ISO5211/DIN3337 and VDI/VDE3845 Standards for Low Pressure Applications 1 Nickel Plated Pneumatic Actuator with ISO5211/DIN3337 and VDI/VDE3845 Standards for Low Pressure Applications 2
